Vertical Shaft Deep Tillage Subsoiler All Soil Conditions Adaptable For Agricultural

Products

Potato Harvester

Mr. Kang Feng

admin@jn-xinyi.com

86--18888222683

Contact Now

Vertical Shaft Deep Tillage Subsoiler All Soil Conditions Adaptable For Agricultural

MOQ:	1set
Price:	US $ 300-800 / set
Standard Packaging:	Iron Box
Delivery Period:	8-15 work days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	2000 sets / Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Xinyi

Certification

Model Number

3S-1.8

Application Field:

Agriculture

Farming Policy:

Dry Cultivating Machinery

Power Source:

Tractor

Operation:

Soil Preparation Machinery, Continuous Running Operation

Traction Type:

Traction

Drive Type:

Tractor

Arbor Configuration:

Vertical Shaft

Color:

Warranty:

1year

Working Width:

1000-2600mm

No. Of Plowbody:

5-13 PCS

Working Depth:

100-240mm

Total Weight:

240-450kgs

Matched Power:

25-90HP

Linkage:

Three-Point Mounted

Specification:

3S-1.0/1.4/1.8/2.1/2.6

HS Code:

84329000

Highlight:

Agricultural Deep Tillage Subsoiler

Vertical Shaft Deep Tillage Subsoiler

All Soil Conditions Adaptable Tillage Subsoiler

Product Description

Efficient Deep Tillage Subsoiler All-Soil-Conditions Adaptable For Agricultural

Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter

Product description:

The subsoiler is a high-performance agricultural machine designed to revolutionize soil management. It effectively breaks up compacted soil layers and penetrates deep into the soil to improve soil aeration, water infiltration and root penetration. With a sturdy frame and durable, sharp teeth, this subsoiler can withstand heavy-duty operations in a variety of soil conditions, from clay to sandy soils.

It is equipped with an adjustable working depth mechanism, allowing operators to customize the tillage depth according to specific crop needs and soil conditions. In addition, its wide working width significantly improves efficiency, allowing large areas of land to be processed in a shorter time.

Model	Unit	3S-1.0	3S-1.4	3S-1.8	3S-2.1	3S-2.6
Working width	mm	1000	1400	1800	2100	2600
No. of plowbody	pcs	5	7	9	11	13
Working depth	mm	100-240
Total weight	kg	240	280	320	370	450
Matched power	hp	25-30	30-40	50-60	70-80	80-90
Linkage	Three-pointed mounted

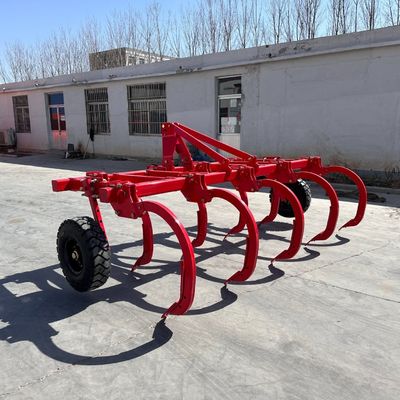

Product Images:

Packing & shipping:

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.

FAQ:

1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so dat I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after you're payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can me order from you?
A: Please send us your enquiry list; we will reply you wifin two working days.
4.Q:If teh finger I look for are not in your catalogue, what should I do?
A: We can develop it according to you're drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we has much more advantages as follows:
1. More than15years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for you're choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.;SGS certifications.
11.Lower repair rate and bad review rate.
12. Has received unstinting support from teh Chinese government.

If you has any questions, please feel free to contact me.
