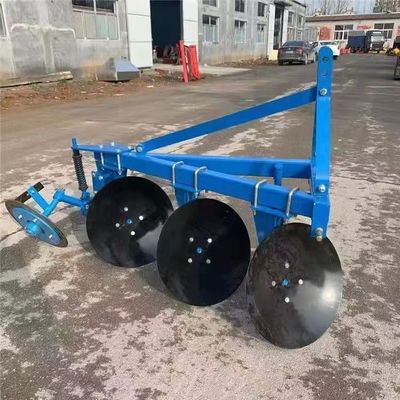

Farm Tillage Equipment Agricultural Disc Plough Gear Drive 40-160HP

MOQ:	1 set

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Xinyi

Certification

Model Number

1LYX-630

Application Field:

Agriculture

Farming Policy:

Dry Cultivating Machinery

Power Source:

Tractor

Operation:

Soil Preparation Machinery, Continuous Running Operation

Traction Type:

Traction

Drive Type:

Gear Drive

Arbor Configuration:

Vertical Shaft

Warranty:

1year

Working Depth:

250-300mm

Working Width:

600-1800mm

Linkage:

Three Pointed

Matched Power:

40-160HP

Diameter Of Disc:

660mm/710mm

Transport Package:

Iron Box

Specification:

2-6 PCS

HS Code:

8432100000

Supply Ability:

500p/Month

Highlight:

Gear Drive Agricultural Disc Plough

Agricultural Disc Plough 160HP

Farm Tillage Equipment 160HP

Product Description

Farm Machinery Agricultural Machinery Disc Plough

Product Description

YuCheng Xinyi Machinery Factory
Product Technical Parameter

The 1LY disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil.Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc.In the field, it is good at cutting grasses and straw, free from stopped by the
grasses,soil or stones. etc. It is efficient in the work.It is of good quality during operation. It is easy to adjust and strong and durable.Thanks to the use of 8 mm rectangular tubes, and more than 20 years of experience in the production of agricultural tools, our disc plough main frame is rugged and durable. Thanks to the discs produced by the factory itself, the discs are hard,wear-resistant and not easily damaged by the use of Anshan and Lingyuan steel, the best steel in China. Thanks to our factory status, we can provide all the accessories, which are all produced by ourselves.

Main Feature

1) The disc plough uses the blades 26"x6mm produced by our own factory and the best steel in China, Anshan and
Lingyuan, and the plough blades are of good quality.

2) The MF disc plough tube thickness is 8mm, the structure is strong and durable.
3) The plough legs are specially heat-treated to make them more durable.

Type	1LYX-230	1LYX-330	1LYX-430	1LYX-530	1LYX-630
Working width (mm)	600	900	1200	1500	1800
Working depth (mm)	250-300
No. of disc (pc)	2	3	4	5	6
Dia of disc (mm)	660/710
Weight (kg)	320	400	490	650	750
Linkage	Three point mounted
Matched power (hp)	40-50	60-80	80-100	100-120	120-160

Product Images:

Packing & shipping:

Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers

Our Company :

Business type	Manufacture
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ:

1.Q: Full price list for these products

A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:

1. More than 30years in manufacturing farming machine

2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.;
11.Lower repair rate and bad review rate
12. We have American Branch to show our main products. We can give customers best service.

If you have any questions, please feel free to contact me.
